Analog clocks - indoor/outdoor use

H-dial

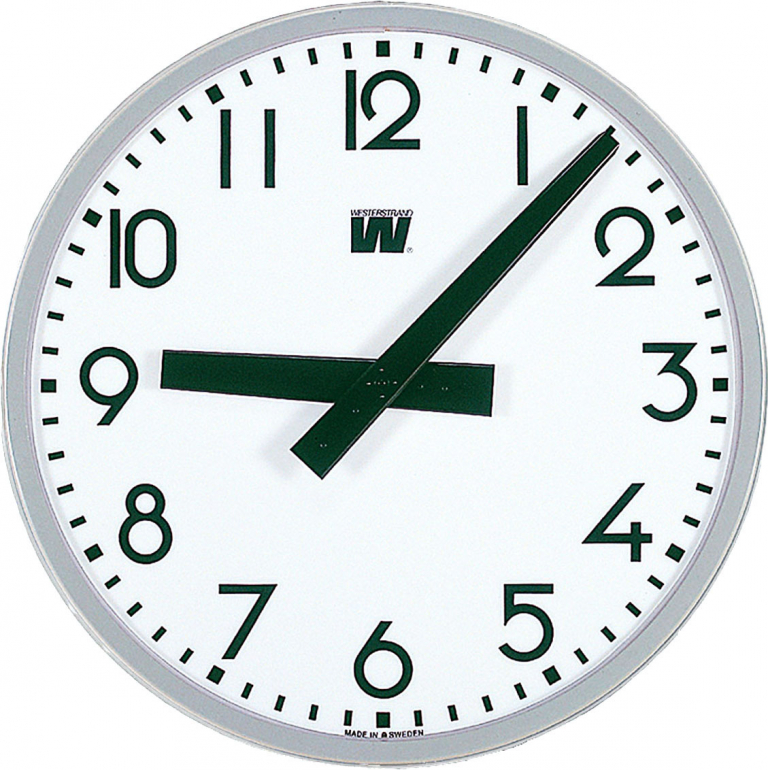

ANALOG INDOOR/OUTDOOR CLOCK 600

- Case in painted aluminum. RAL 850M
- Matt white clock face.
- Black hour and minute hands.
- Flat protective glass of polycarbonate, 4mm.
- Interior illumination available as an option.

Analogue clocks Indoor clock Analogue clocks Impulse Time Sports center Timecode Industry Outdoor clock

General
Analog indoor/outdoor clock with a painted aluminum case.
The clock face is available with black numerals 1-12 (A-face), or black hour symbols (H-face).
Flat protective glass of polycarbonate, 4mm.

Control system
The clock is available with Pulse.

Installation
Single-sided for wall mounting.

PulseI Timecode
Automatic summer/winter time: Yes (via master clock) Yes (via master clock)
Power supply: 24 VDC (from master clock) 24 VDC (from master clock)
Power consumption: 15 mA/page 20 mA/page
Ambient temp: -20°C to +50°C -20°C to +50°C
Protection rating (indoor/outdoor): IP20 IP20

Size

Dial face

Housing

Protection glass

Mounting

Synchronization
