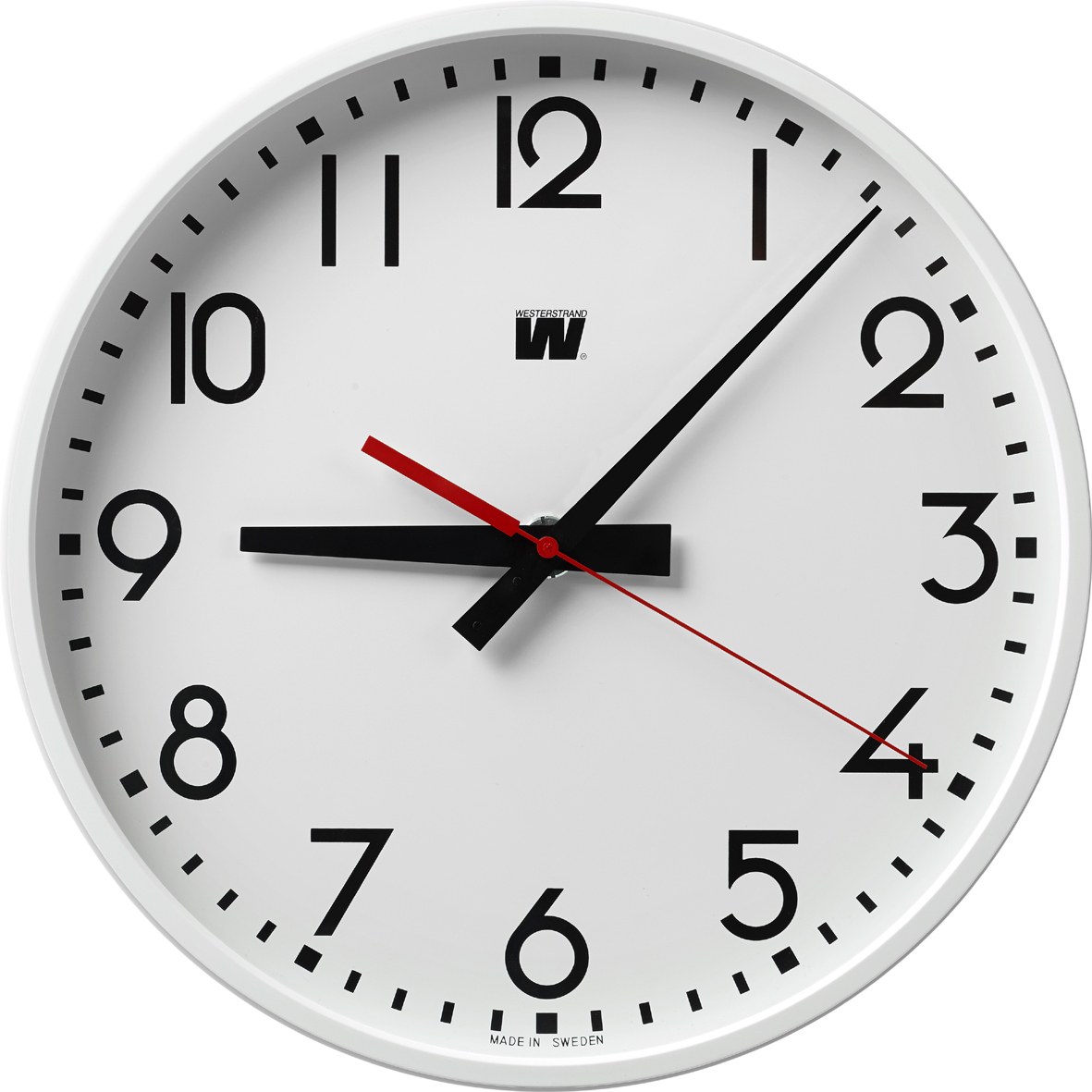

Analogue indoor clock - with seconds

- ABS plastic housing.
- Matt white dial face.
- Black hour and minute hands, red second hand.
- Flat protective glass.

Indoor clock KNX Quartz WiFi Wireless Airport Analogue clocks Hospital Impulse Timecode NTP Industry

General
Analogue indoor clock with ABS plastic housing.
The plastic housing is available with an optional natural aluminum ring. (Available in different depths; see leaflet S9070.)

The dial face is available with black numerals 1-12 (A-dial), black hour marks (H-dial) or an Office version.

The clock is supplied with protective glass as standard, but this may be replaced by acrylic or polycarbonate.

Synchronization
The clock is also available with Impulse, Timecode, NTP, WiFi, KNX, Quartz or Wireless.

Installation
Single-sided for wall mounting or double-sided with a choice of bracket for wall or ceiling mounting.

Battery-powered
Note! Batteries not included.

	Impulse	Timecode	NTP	WiFi	KNX	Quartz	Wireless
Second hand:	Sweep	Sweep	Sweep	Step	Sweep	Step	Step
Automatic summer/winter time:	Yes (via master clock)	Yes (via master clock)	Yes (via time server)	Yes (via time server)	Yes (via master clock)	No	Yes (via master clock)
Power supply:	24 VDC (from master clock)	24 VDC (from master clock)	PoE	Battery / 230 VAC (Adapter)	SELV 29 VDC (KNX bus)	Battery / 230 VAC (Adapter)	Battery / 230 VAC (Adapter)
Power consumption:	25 mA	12 mA	2 Watt (IEEE 802.3af)		30 mA
Ambient temp:	0 to +40°C	0 to +40°C	0 to +40°C	0 to +40°C	0 to +40°C	0 to +40°C	0 to +40°C
Protection rating:	IP20	IP20	IP20	IP20	IP20	IP20	IP20
