Circle Line - red second ring

Circle Line - green second ring

Circle Line, indoor

- Black painted aluminum housing.
- Polycarbonate front.
- Second ring in red or green.
- Built-in dimmer.

Digital clocks Stand-alone Impulse Timecode NTP

General

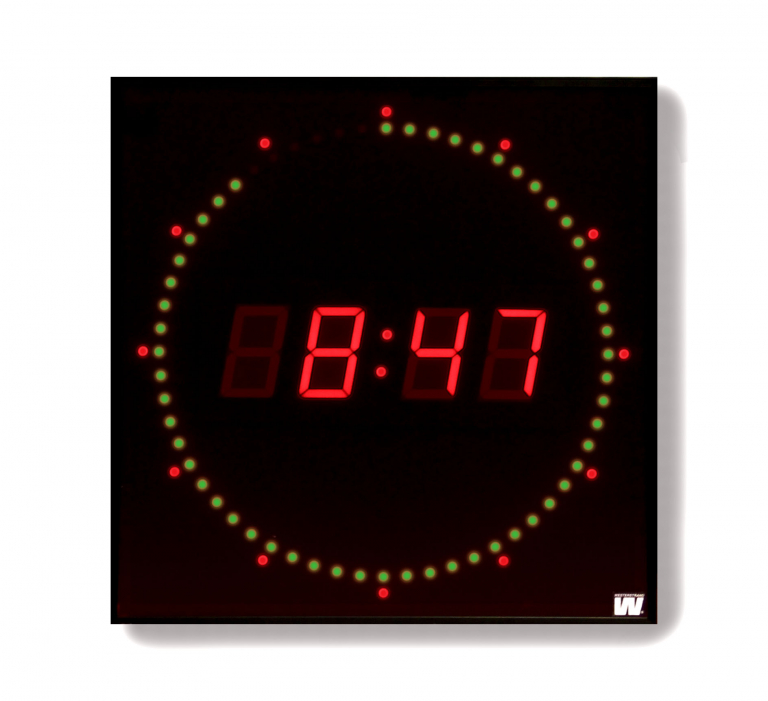

Digital indoor clock with a black painted aluminum housing and polycarbonate front. The sec. ring is available with red or green LEDs.
The digital clock has an automatic built-in dimmer.

Synchronization
The clock is also available as Impulse, Timecode, NTP, or as Stand-alone.

Installation
Single-sided for wall mounting.

Power failure
The LEDs are extinguished during power failures. An internal clock keeps time for approx 24 hours. When power is restored, the LEDs light up displaying the correct time.

Impulse Timecode NTP Stand-alone
Automatic summer/winter time: Yes (via master clock) Yes (via master clock) Yes (via time server) Yes
Power supply: 230 VAC 230 VAC 230 VAC/PoE 230 VAC
Power reserve: 24 hours 24 hours 24 hours 24 hours
Power consumption: 5 mA 5 mA --/IEEE 802.3af
Ambient temp: 0 to +40°C 0 to +40°C 0 to +40°C 0 to +40°C
Protection class: IP30 IP30 IP30 IP30
Dimensions WxHxD: 344x344x70mm 344x344x70mm 344x344x70mm 344x344x70mm
Weight: 3.4 kg 3.4 kg 3.4 kg 3.4 kg

Character height

Housing

Character color

Front Cover

Mounting

Synchronization

GNSS receiver

Used for receiving time-coded signal from up to three GNSS navigation systems at the same time.
